In relation to Axialis IconWorkshop, this article offers information on the following topics:

What are the differences between Windows and Macintosh icons?

Microsoft Windows and Apple Macintosh icons are very similar. They both have several image formats embedded in the same icon. But the file format is totally different. You cannot use Macintosh icons as is under Windows. The file format is not compatible. You must convert them to Windows ICO file format (with Axialis IconWorkshop of course!). This is the same under Macintosh OS which cannot read Windows icon files.

Axialis IconWorkshop supports the following Macintosh icon files:ICNS, RSC and BIN. You can easily open them into the Icon Editor and save them as Windows ICO format. During this operation, we recommend you to remove special Macintosh formats which are useless under Windows. You can also read a Windows icon and save it as Macintosh format.

Recommended image formats embedded in icons are slightly different in Windows and Macintosh. See the comparison tables below:

icons

Important
It is worth noting that certain image formats cannot be used in Macintosh icon specifications, and as a result, Axialis IconWorkshop does not allow their creation. If you attempt to convert a Windows icon to Macintosh, certain formats will be excluded. However, it is important to note that all image formats, including custom formats not listed above, can be created in Windows icons.

Axialis IconWorkshop

Create Icons using a Professional Authoring Tool

Make Icons

5-Star Award

  • Axialis IconWorkshop is a professional icon authoring tool for creating icons on multiple platforms and devices.
  • The tool supports creating icons for Windows, macOS, Unix/Linux, Android, iPhone.
  • The interface is designed to increase productivity, with easy accessibility to all tools and a powerful built-in librarian and file explorer.
  • Batch processing features are included for creating multiple icons at once.
  • The tool includes features such as icon creation from images and image objects to help create professional-looking icons quickly.
  • The tool is compatible with industry standards and includes plugins for Adobe products and Microsoft Visual Studio.

Windows 7 Windows 8 Windows 10 Windows 11 Plug-Ins Add In

Download Now Learn More

Learn More

Image formats included in Macintosh icons

Only a limited list of image formats are available in Macintosh icons (no other or intermediate formats can be defined):

Macintosh OSX

  • Recommended: 128x128 (RGB/A), 48x48 (RGB/A, 256 colors, 16 colors), 32x32 (RGB/A, 256 colors, 16 colors, mono), 16x16 (RGB/A, 256 colors, 16 colors).
  • Minimum: 48x48 (RGB/A, 256 colors), 32x32 (RGB/A, 256 colors), 16x16 (RGB/A, 256 colors).

Macintosh OSX 10.4 Tiger

  • Recommended: 256x256 (RGB/A), 128x128 (RGB/A), 48x48 (RGB/A, 256 colors, 16 colors), 32x32 (RGB/A, 256 colors, 16 colors, mono), 16x16 (RGB/A, 256 colors, 16 colors).
  • Minimum: 128x128 (RGB/A), 48x48 (RGB/A, 256 colors), 32x32 (RGB/A, 256 colors), 16x16 (RGB/A, 256 colors).

Macintosh OSX 10.5 Leopard

  • Recommended: 256x256 (RGB/A), 128x128 (RGB/A), 48x48 (RGB/A, 256 colors, 16 colors), 32x32 (RGB/A, 256 colors, 16 colors, mono), 16x16 (RGB/A, 256 colors, 16 colors).
  • Minimum: 128x128 (RGB/A), 48x48 (RGB/A, 256 colors), 32x32 (RGB/A, 256 colors), 16x16 (RGB/A, 256 colors).
  • Optional: 512x512 (RGB/A).
Note
The 32x32 Monochrome format is recommended for Macintosh icons to ensure display compatibility on old Macintosh systems with B/W screens.

Various Macintosh file types

Macintosh icons can be saved using two different file formats: "ICNS" and "RSC" (or "RSRC" is used). A third format MacBinary "BIN" is used for transfer purpose between Windows and Macintosh.

  • ICNS - This is the standard Macintosh icon file format. Only one icon (with several formats) can be saved in this format. This format is the most commonly used.
  • RSC or RSRC - This is the Macintoshresource file format. It is used mainly by developers. This format can contain several icons. Axialis IconWorkshop support reading of RSC files with several icons but can write only RSC files with one icon.
  • BIN - MacBinary format. This format permits to easily transfer files between Macintosh and Windows. For more information on this format, visit this website: http://en.wikipedia.org/wiki/MacBinary.

We recommend to use this file format to transfer your icons to Macintosh because it is compatible with Macintosh file system which separate each file in two parts called "forks": The data fork and the resource fork. The data fork contains the data included in the file (a text file for example). The resource fork contains the image or icon which permits to display it on screen. See below for more information on transfer from Windows to Macintosh.

Transfer an icon between Windows OS and Macintosh OS

To transfer and icon between Windows and Macintosh, the easiest method is to use the MacBinary format. This format permits generating an icon compatible with the Macintosh OS forks.

The MacBinary format permits to merge the 2 forks in one file handy for transfer, mail attachment or Web publishing. When IconWorkshop saves an icon in MacBinary format, it writes the icon in the resource fork. The data fork is left empty. As a result, as soon as you receive or see the file in Macintosh, the icon appears automatically. Then, you can handle it using the standard Finder/MacOS user interface.

icons

256x256 PNG-compressed icon format for Windows Vista

For reasons of compatibility with hi-res screens, Microsoft Windows Vista introduced a new format of icons supporting PNG compression and sizes up to 256x256.

Axialis IconWorkshop can create PNG-compressed Windows icons up to 256x256. To read more about Windows Vista icons and how to create them using Axialis IconWorkshop, read this article: "Introducing Windows Vista Icons".

768x768 PNG-compressed icon format for Windows 10

For the same reason of compatibility with Hi-DPI screens, Microsoft included icons with larger image size (768x768) in the developer preview of Windows 10. But in the final Windows 10 build the large image size was removed from the icons.

We decided to keep this image format in IconWorkshop for compatibility if the format is enabled to a future update. We also added the 512x512 format. Both are PNG-Compressed.

256x256 icon format for OSX Tiger (10.4)

The new Macintosh OS version 10.4 (Tiger) introduces a new icon format which permits to create 256x256 icons. In the upcoming months a new generation of flat LCD displays will have much higher resolutions. The screens won't be larger but the number of pixels per inch (DPI) will increase. This will result in smaller items on screen including icons. To compensate this effect, Apple has planned to create a new resolution-independent user interface and the ability to display icons with higher definition in Tiger.

This format is highly compressed and permits to create large 256x256 icons using less than 100 KB. The compression is based on JPEG 2000. This format is similar to JPEG but can include a transparency channel (Alpha Channel). However, JPEG 2000 has an additional option which permits to compress the image without quality loss (unlike JPEG which "destructs" the original image to increase the compression ratio). In OS-X 10.4 icons, the icons are compressed using this lossless method, keeping the original image quality. The resulting compression ratio is about 1:2 (similar to PNG).

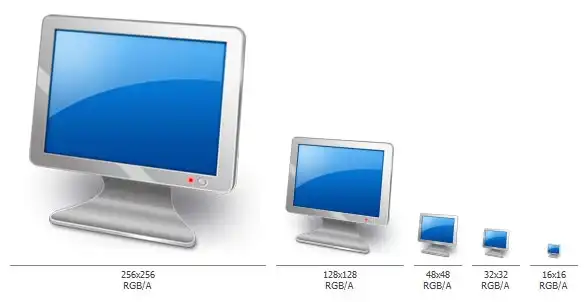

Keep in mind that a 256x256 icon is 28 times the size of a 48x48 icon! It will change deeply the way you'll create icons in the future. But be sure we'll add many features to help you in future versions. To get an idea of things to come, see an icon snapshot comparing sizes from 256x256 to 16x16:

icons

512x512 icon format for OSX Leopard (10.5)

OSX version 10.5 (Leopard) introduces an extra large icon format which permits displaying 512x512 icons on Hi-DPI screens. This format uses the same compression format as 256x256 format for Tiger (see above).

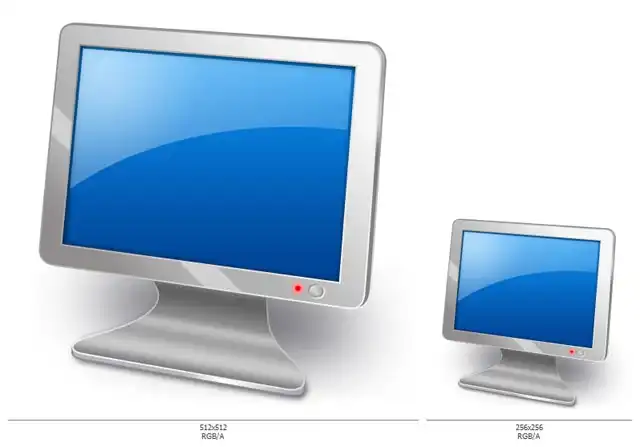

A 512x512 icon is 4 times the size of a 256x256 icon and 114 times the size of a 48x48 icon! Keep this in mind when you're designing the image. The 512x512 image can be complex with a high level of details. To get a better idea, see an icon snapshot comparing sizes between 512x512 and 256x256 image formats:

icons

1024x1024 icon format for OSX Lion (10.7)

OSX version 10.7 (Lion) introduces an extra large icon format which permits displaying 1024x1024 icons on Hi-DPI screens. This format uses the same compression format as 256x256 format for Tiger (see above). However, it can be compressed as PNG as well.
